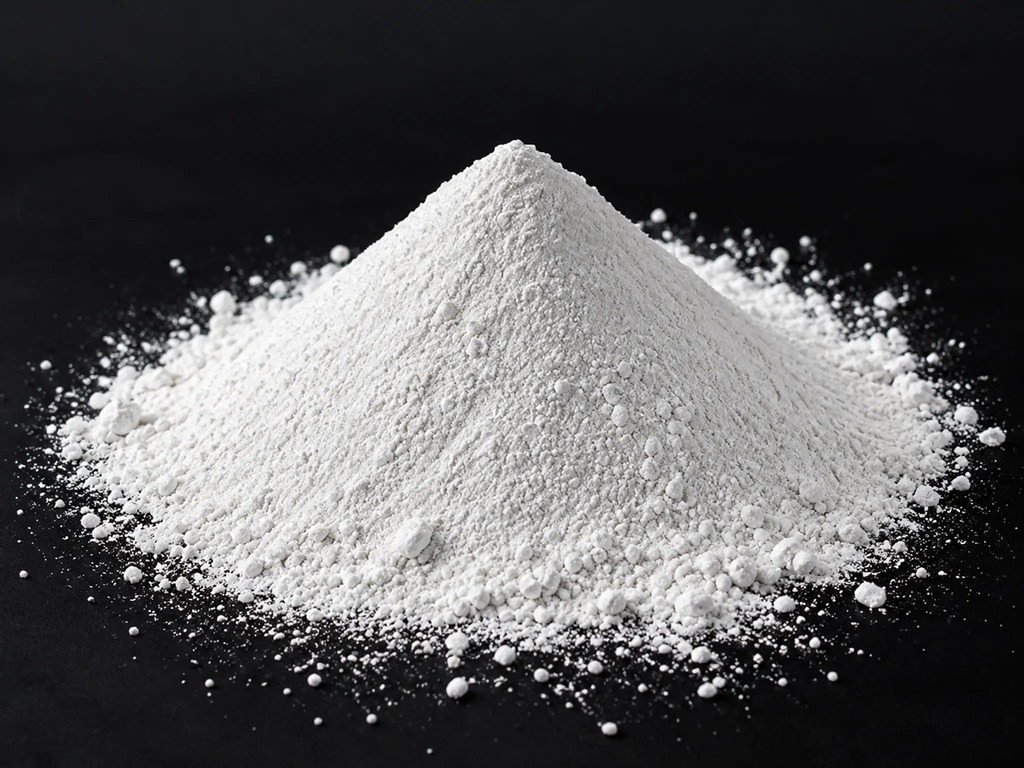

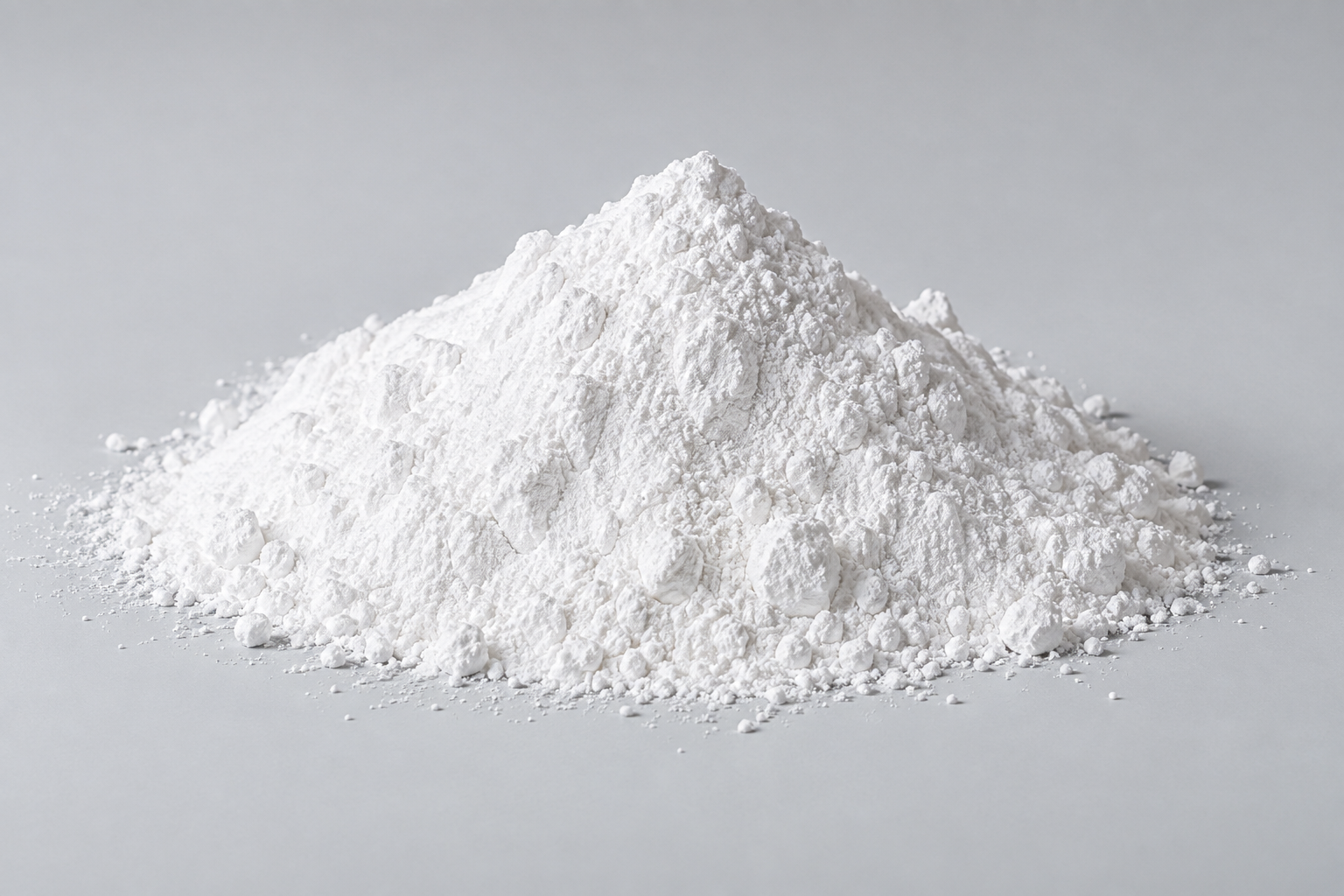

Ground Calcium Carbonate (GCC)

Purity & Specs CaCO₃ ≥ 99.60% Moisture ≤ 0.20%

Fineness 4–25 D(97) µm 9 Standard Grades

Coating 7.5–14.5 kg/t Stearic Acid Coated

Uncoated Grades: CC4, CC6, CC8, CC10, CC12, CC13, CC15, CC20, CC25, CC30, and CC45

Coated Grades: Surface-coated calcium carbonate (CC4T, CC6 T, CC8 T, CC10 T, CC8T-P, CC10T-P, CC12 T, CC13 T, CC15 T, CC15T-P, CC20 T, CC25 T, CC30 T, and CC45 T)

Industry	Application	Recommended CarboCore grades to evaluate
Plastic masterbatch	Calcium carbonate filler masterbatch	CC4T, CC6T, CC8T, CC10T
PP woven packaging	Raffia tapes, woven sacks and woven fabric	CC4T, CC6T, CC8T, CC10T
Flexible packaging	Blown film, cast film and packaging film	CC4T, CC6T, CC8T
Plastic bags	Shopping bags, garbage bags and industrial bags	CC6T, CC8T, CC10T
Breathable film	Hygiene and moisture-management films	CC4T, CC6T — subject to dedicated breathable-film qualification
Injection moulding	Household products, crates, furniture and industrial components	CC8T, CC10T, CC15T, CC20T
Blow moulding	Bottles, containers and hollow plastic products	CC6T, CC8T, CC10T
PVC pipes	Rigid PVC pressure and drainage pipes	CC8T, CC10T, CC15T — pressure pipes subject to applicable performance testing
PVC profiles	Window profiles, panels, channels and technical profiles	CC4T, CC6T, CC8T, CC10T
PVC cables	Cable insulation and sheathing compounds	CC4T, CC6T, CC8T, CC10T
Flexible PVC	Artificial leather, flooring, hoses and calendared sheets	CC6T, CC8T, CC10T, CC15T
Polymer compounds	PP, PE, HDPE, LDPE and PVC compounds	CC4T, CC6T, CC8T, CC10T, CC15T, CC20T, CC25T
Specialty PVC compounds	Selected profiles, sheets, cables, artificial leather and pipe formulations	CC8T-P, CC10T-P, CC15T-P — according to individual grade specifications
Specialty polyolefin compounds	Selected PP and PE masterbatch and compounds for moulded products	CC8T-P, CC10T-P, CC15T-P — according to individual grade specifications
Paints	Premium decorative and high-finish coatings	CC4, CC6, CC8
Paints	Interior and exterior emulsion paints	CC8, CC10, CC12, CC13, CC15
Paints	Alkyd paints, primers and industrial coatings	CC6, CC8, CC10, CC12, CC13, CC15
Paints	Textured and high-build coatings	CC20, CC25, CC30, CC45
Powder coatings	Functional extender and formulation filler	CC4, CC6, CC8, CC10
Wall putty	Fine finishing putty and smooth skim coats	CC8, CC10, CC12, CC13, CC15
Wall putty	General-purpose interior and exterior wall putty	CC15, CC20, CC25, CC30
Construction chemicals	Tile adhesives, joint fillers and repair compounds	CC15, CC20, CC25, CC30, CC45
Dry-mix products	Mortars, plasters, renders and skim coats	CC20, CC25, CC30, CC45
Acrylic sealants	Water-based caulks and joint sealants	CC6, CC8, CC10, CC12, CC13, CC15
Silicone and polyurethane sealants	Selected reactive sealant formulations	CC4T, CC6T, CC8T, CC10T — subject to moisture and cure-compatibility testing
Adhesives	Water-based and industrial adhesive formulations	CC6, CC8, CC10, CC12, CC13, CC15
Polymer-based adhesives	Hot-melt and polymer-compatible formulations	CC4T, CC6T, CC8T, CC10T
Paper	Paper filling, coated paper and paperboard	CC4, CC6, CC8, CC10
Paper coatings	Selected coated-paper and paperboard formulations	CC4, CC6 — subject to coating-grade specifications
Wallpaper	Coating and functional mineral filling	CC6, CC8, CC10, CC12, CC13
Printing inks	Extender and mineral filler	CC4, CC6 — subject to dispersion and fineness requirements
Rubber	General rubber compounds and moulded products	CC10, CC12, CC13, CC15, CC20, CC25
Flooring	PVC flooring and polymer-based backing compounds	CC10T, CC15T, CC20T, CC25T
Flooring	Mineral-filled backing compounds and cementitious floor systems	CC15, CC20, CC25, CC30, CC45
Artificial marble	Fine mineral filling in engineered stone and resin-based composites	CC15, CC20, CC25, CC30, CC45
Ceramics	Ceramic bodies and selected glaze formulations	CC10, CC12, CC13, CC15, CC20, CC25
General manufacturing	Functional mineral filler and formulation extender	All listed CC, CC-T and CC-T-P grades, according to formulation and processing requirements

Grade Selection Note

This guide covers all 21 current CarboCore GCC grades. Listed grades are candidates for evaluation; final suitability depends on the individual technical data sheet, particle-size distribution, surface treatment, moisture, formulation and processing trials.

Technical & Regulatory Statement

Applications are indicative and subject to the selected grade’s chemical composition, particle-size distribution, surface treatment and processing characteristics. CarboCore’s technical team supports customers in selecting the appropriate grade for their formulation and manufacturing process.

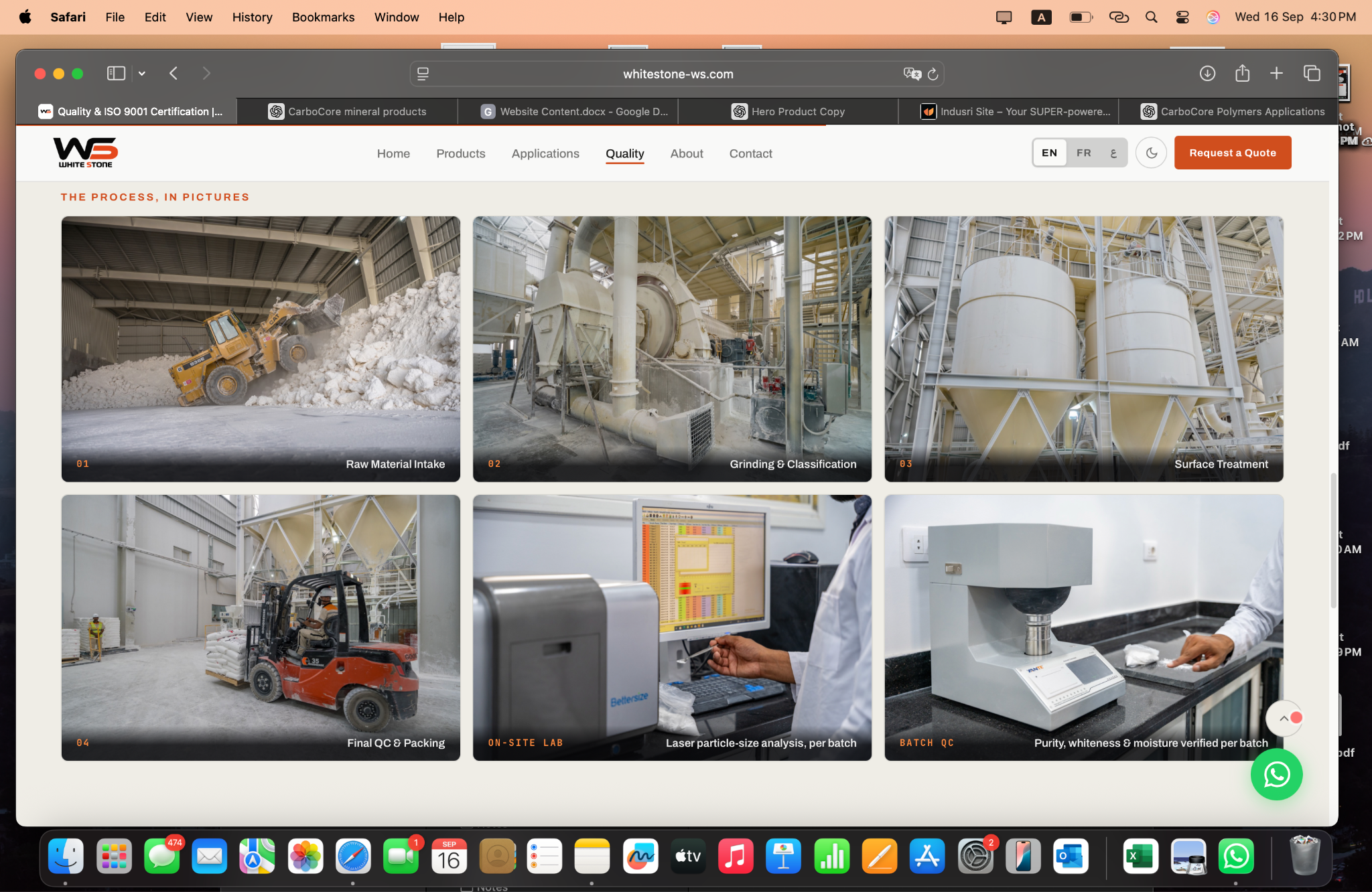

Precision at Every Stage — From Quarry to Delivery

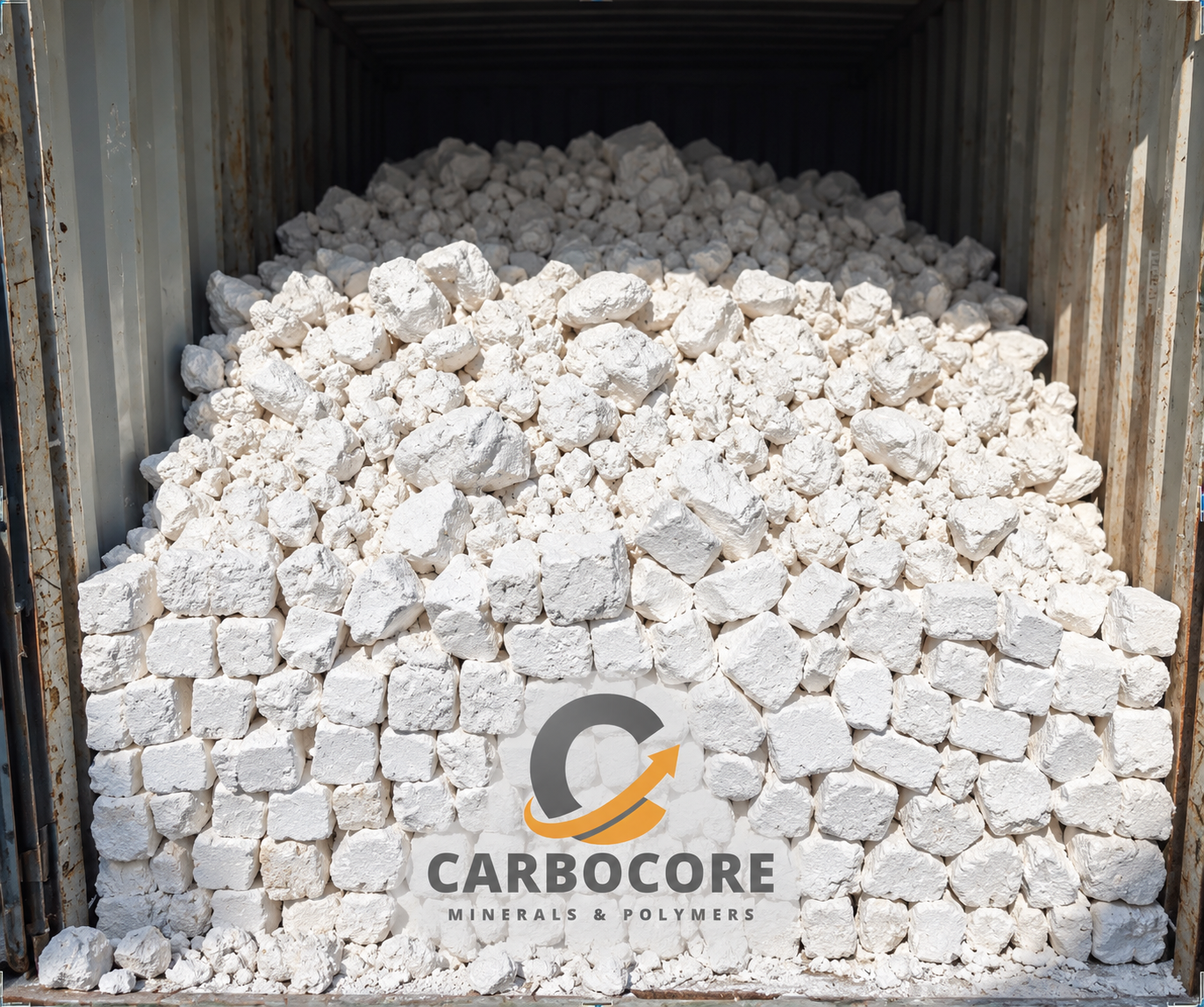

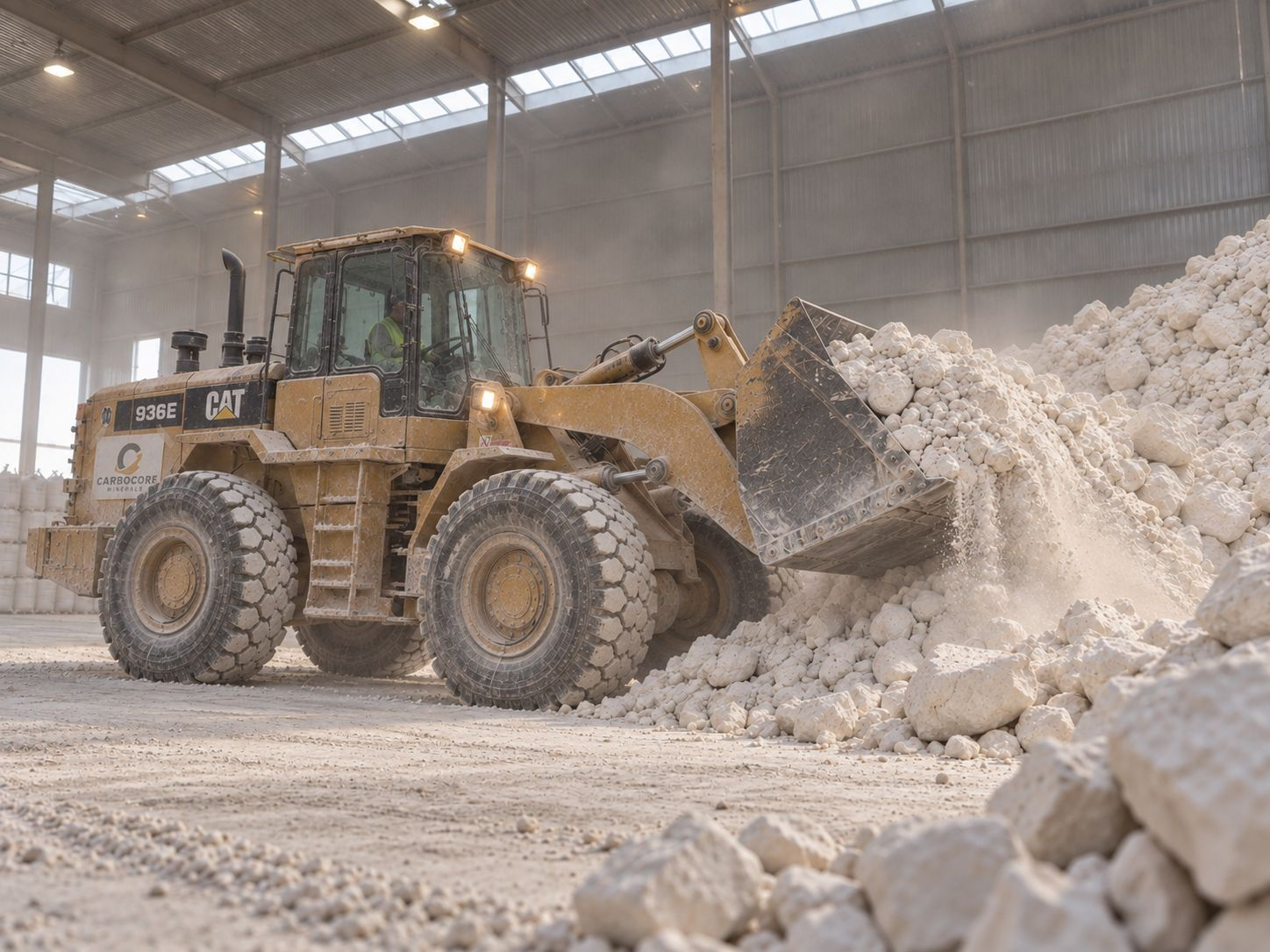

01 - Limestone Selection

Source selection based on CaCO₃ purity, whiteness, and low silica, iron, and magnesium impurities.

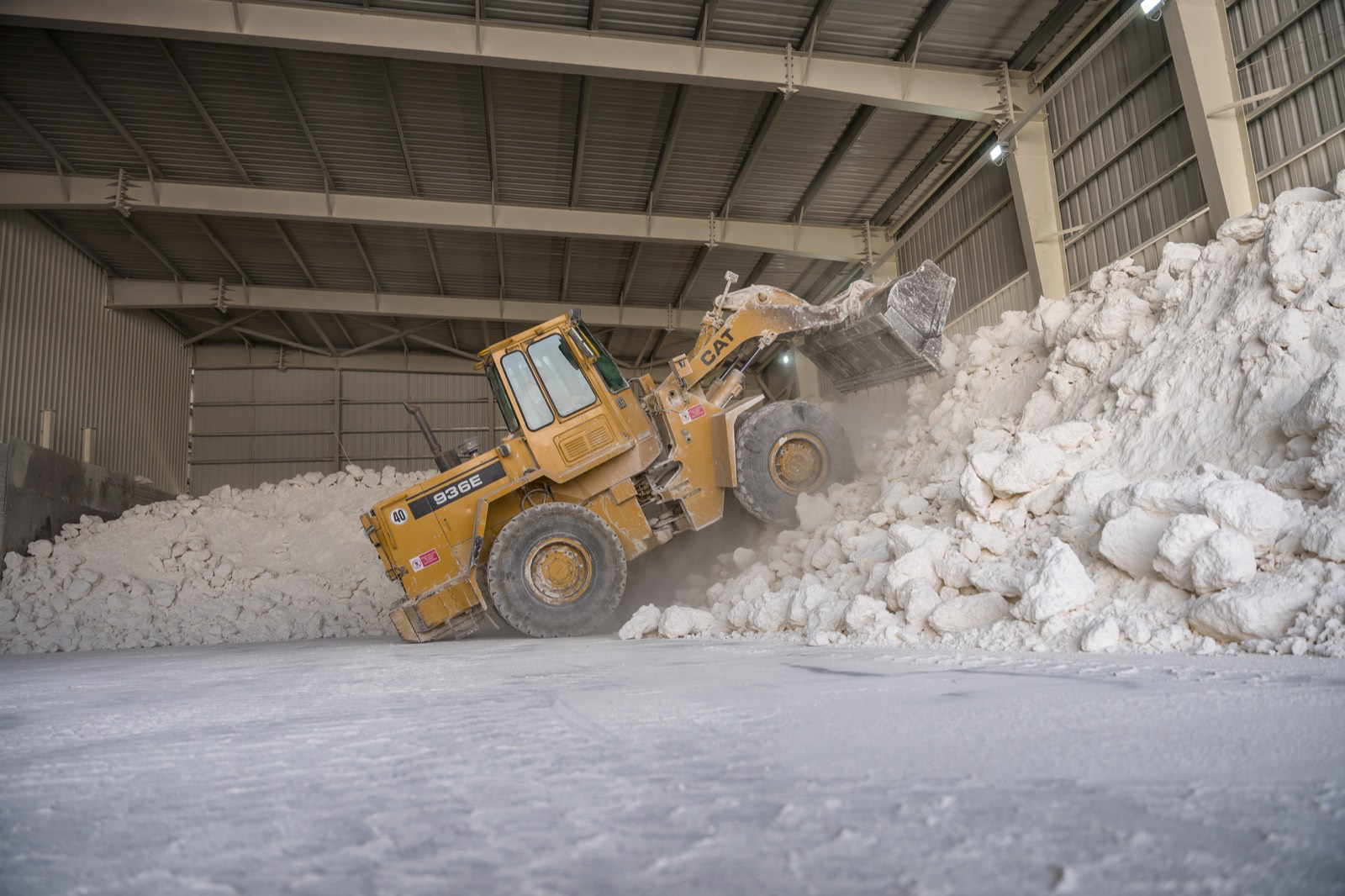

02 - Feedstock Preparation

Limestone sorted, crushed, and checked for moisture and contamination to maintain consistent mill feed.

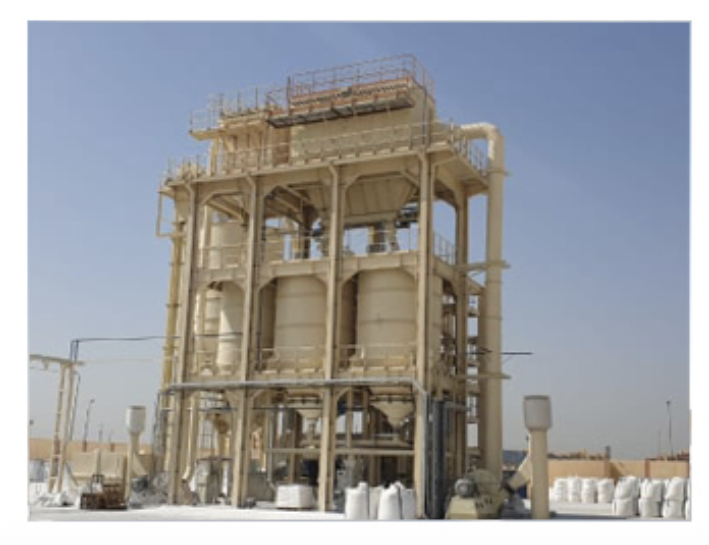

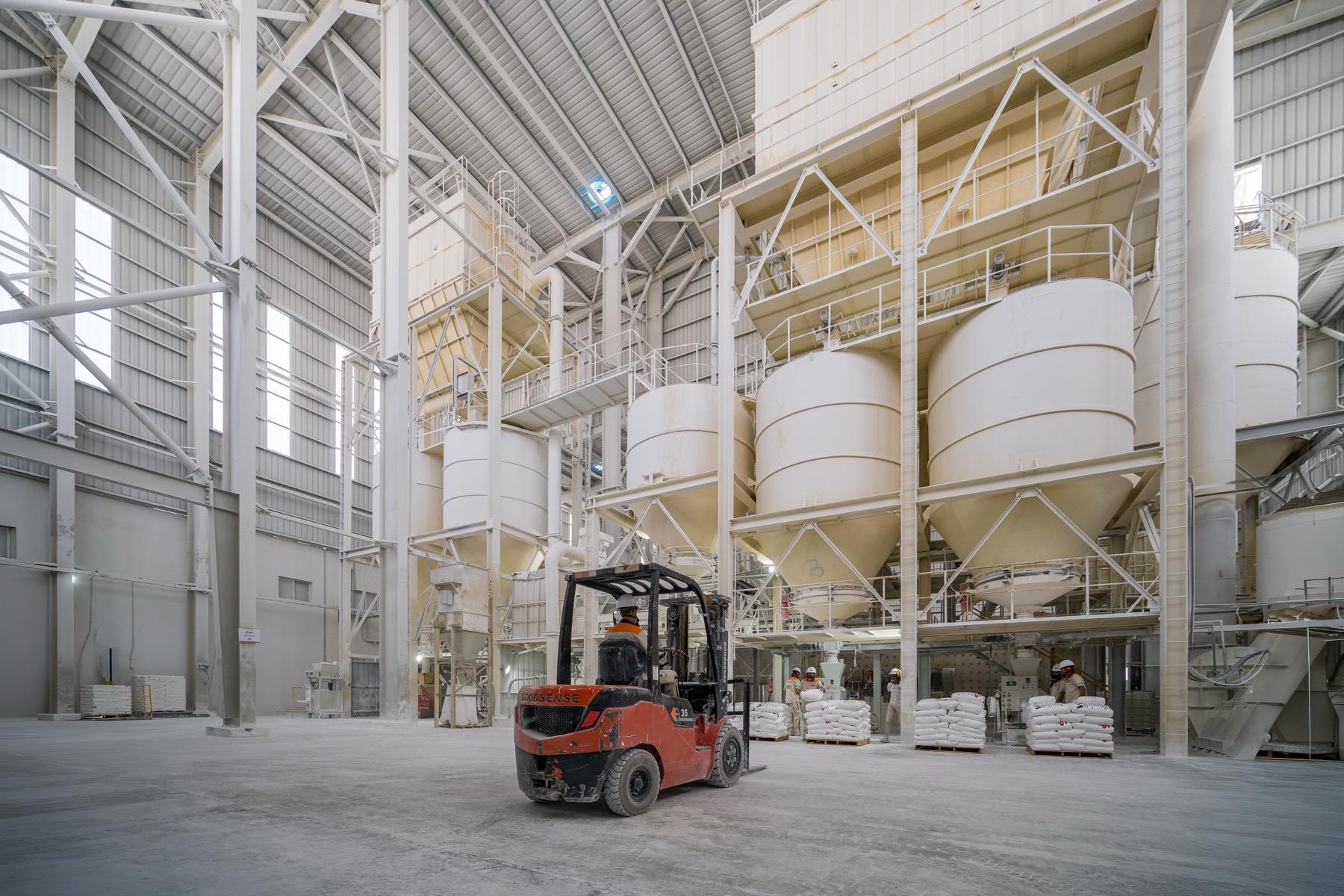

03 - Micronization & Classification

Controlled milling and air classification target each grade’s D50, D97, and oversized particle limits.

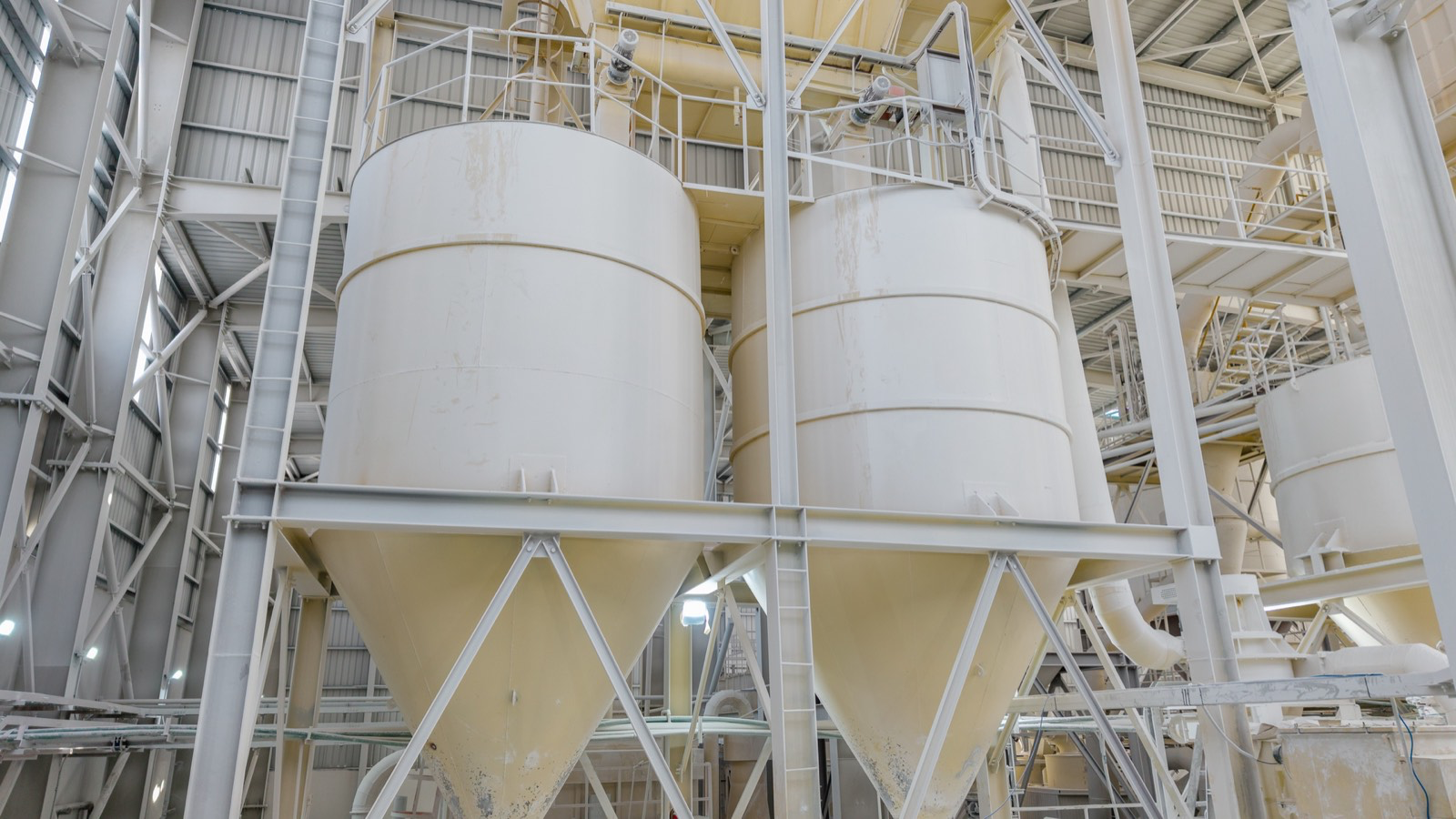

04 - Controlled Surface Treatment

For coated grades, stearic acid dosage and processing conditions controlled for uniform treatment, with coating content and hydrophobicity assessed.

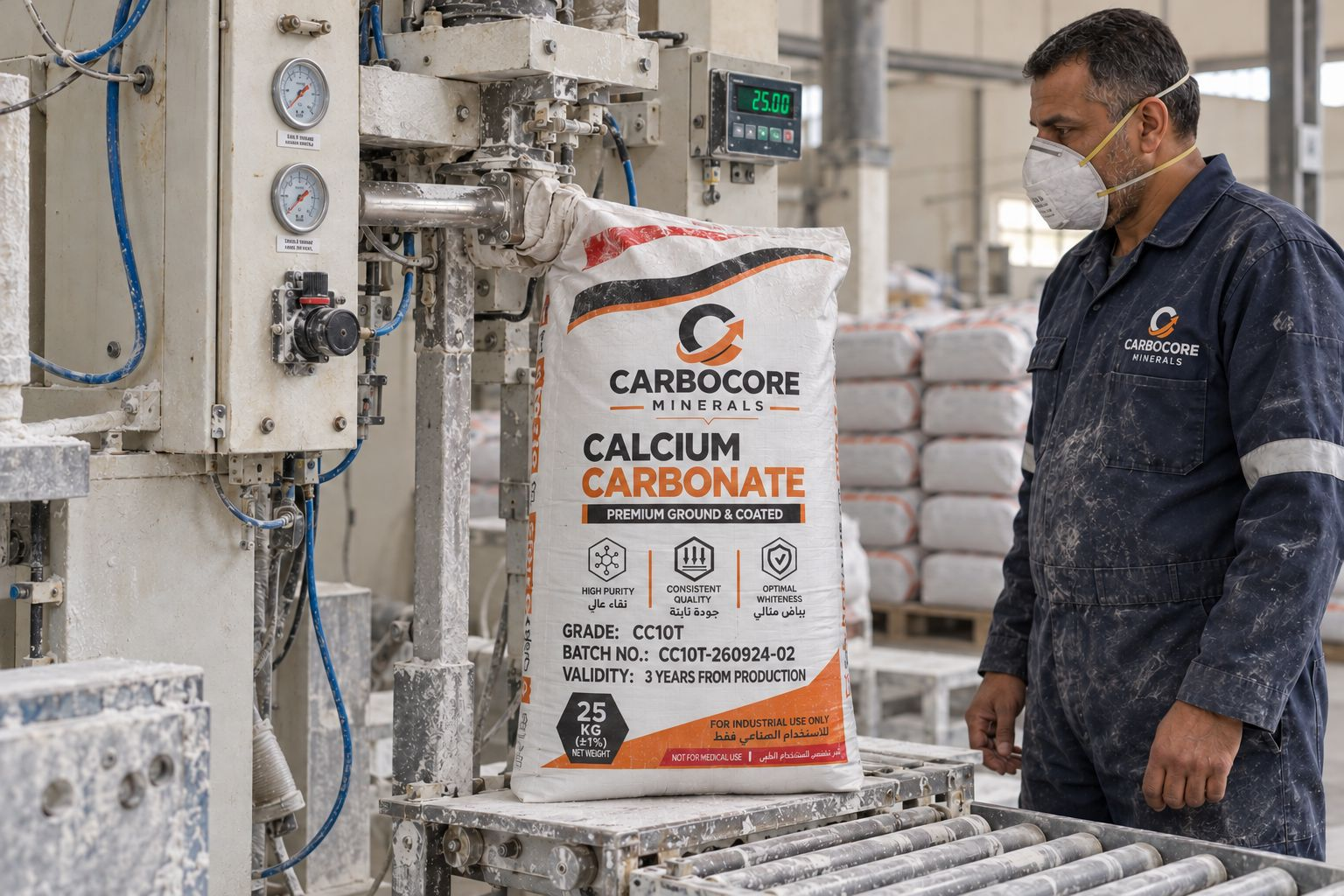

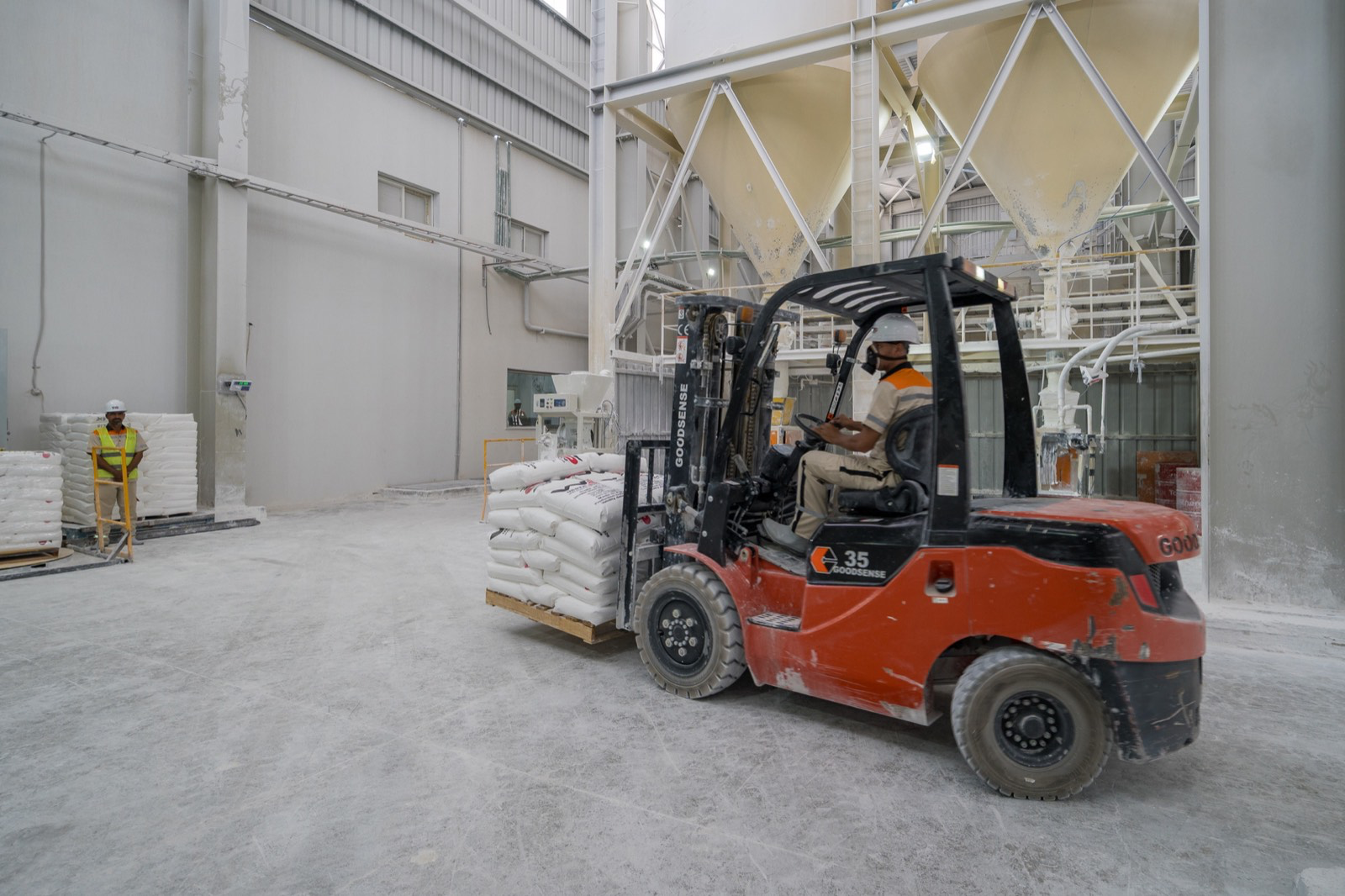

05 - Batch Testing & Traceable Packing

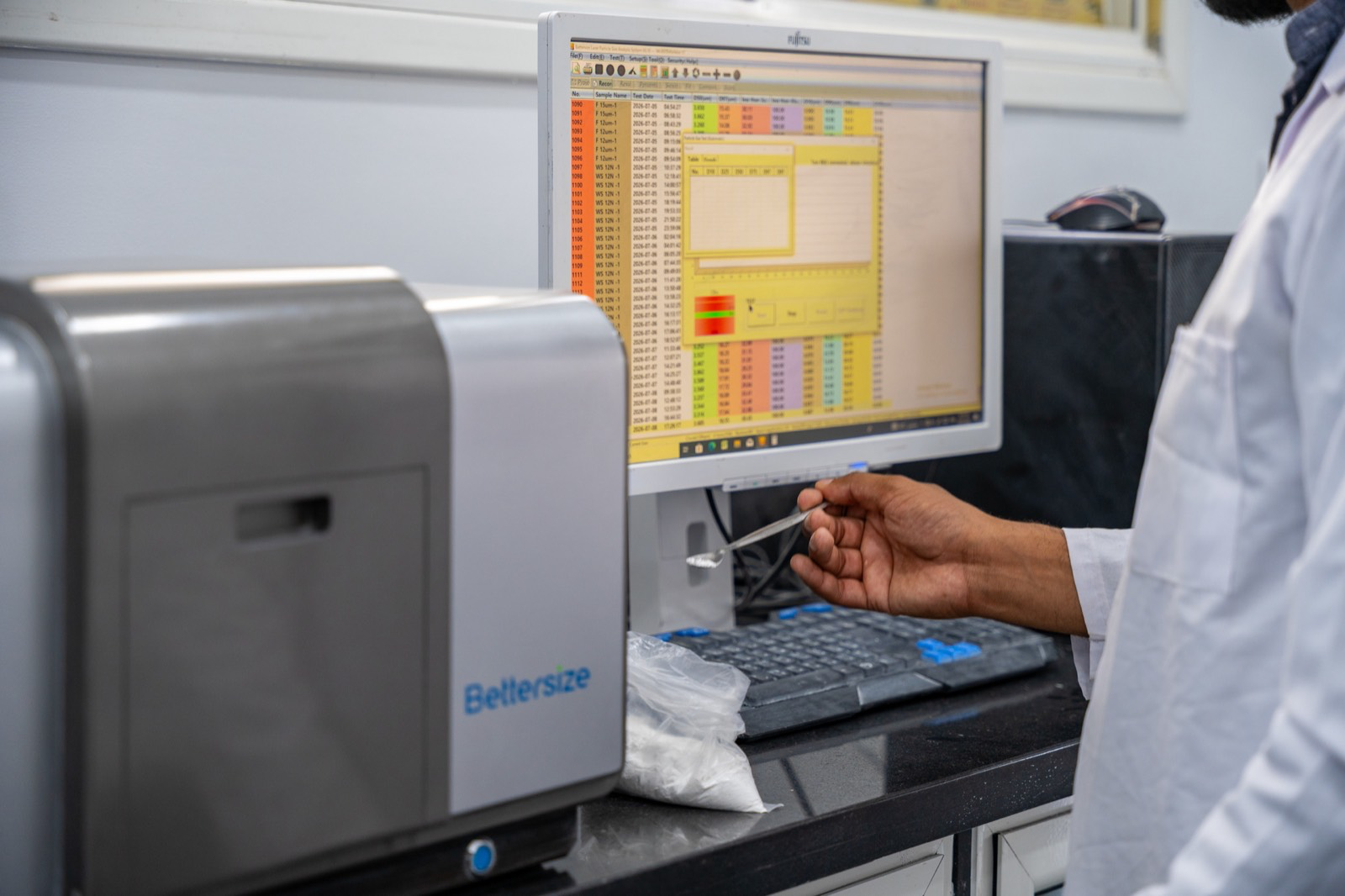

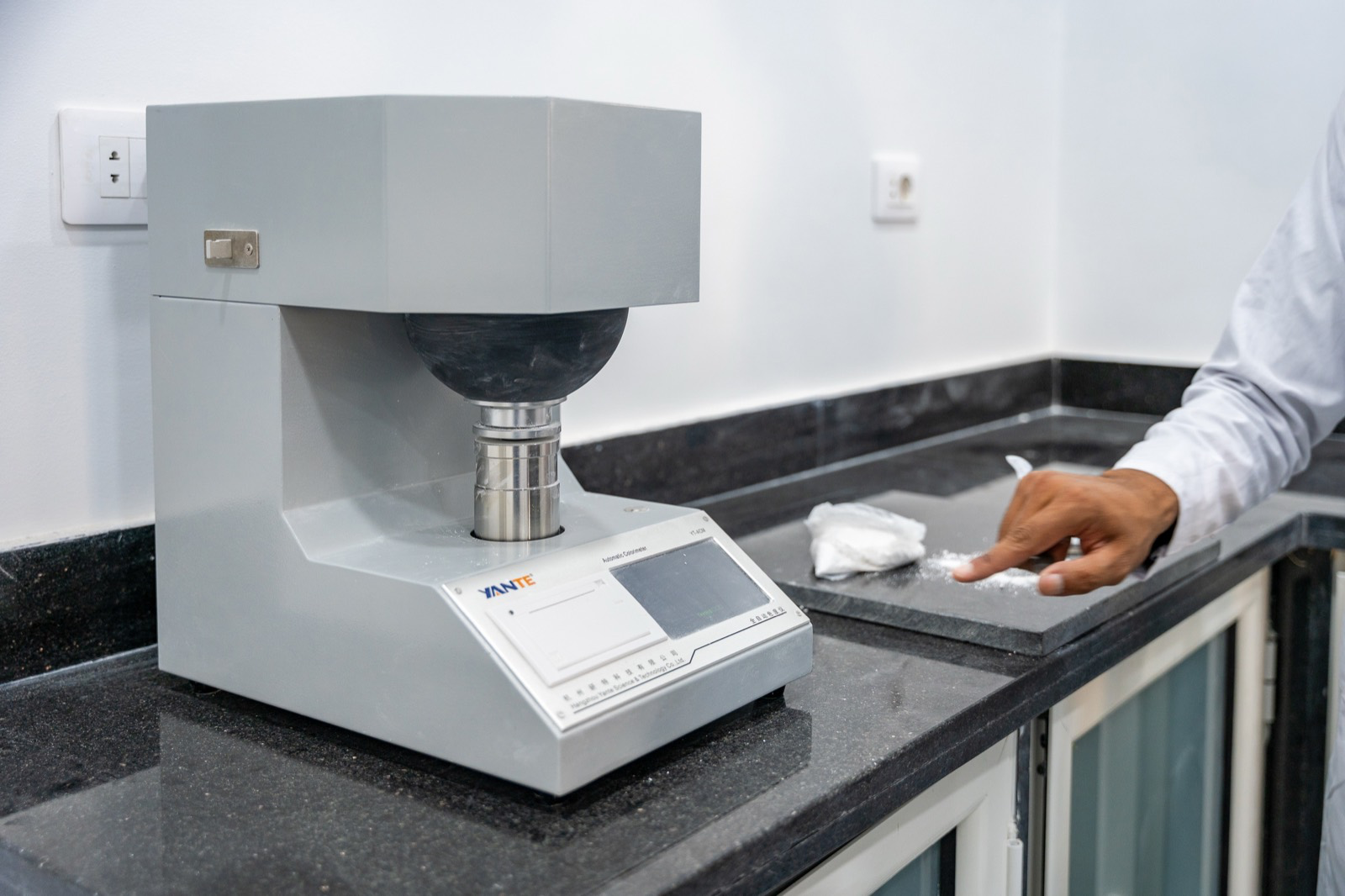

Finished material checked for particle size distribution, whiteness, moisture, and chemical composition. Packed with grade, batch number, and production date.

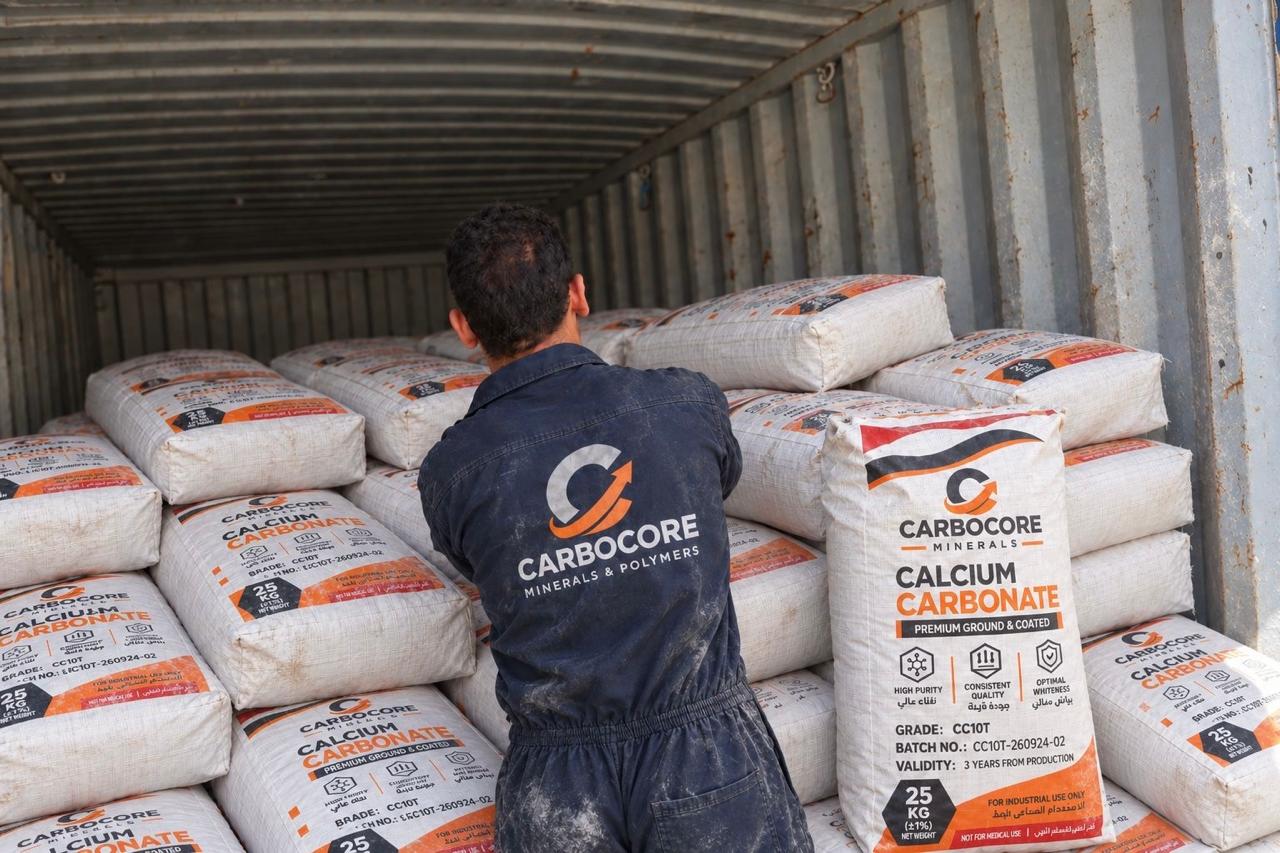

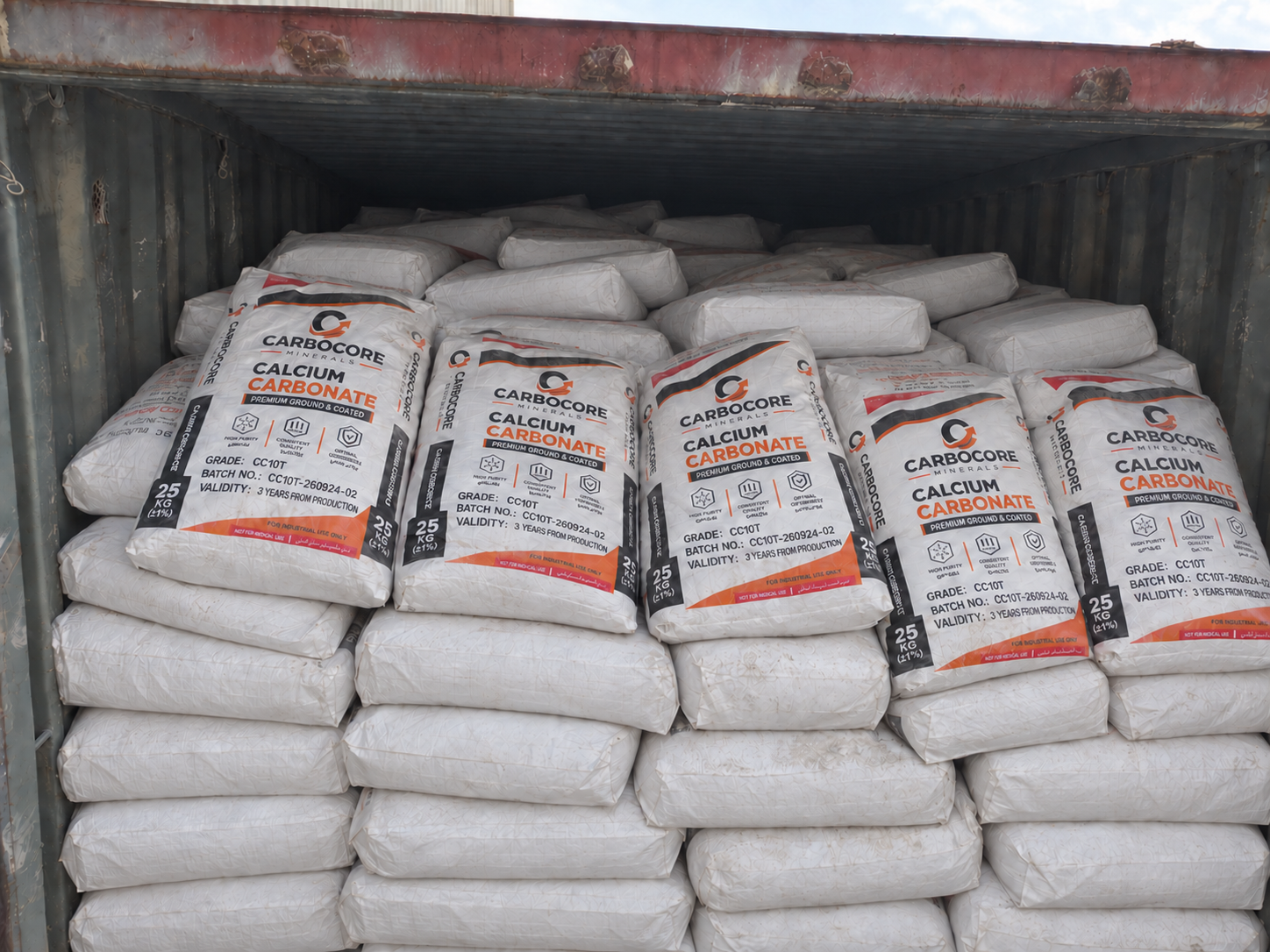

06 - Shipment Release & Documentation

Packaging integrity and loading conditions checked before dispatch. Batch-specific COA supplied with the applicable TDS, SDS, and shipping documents.

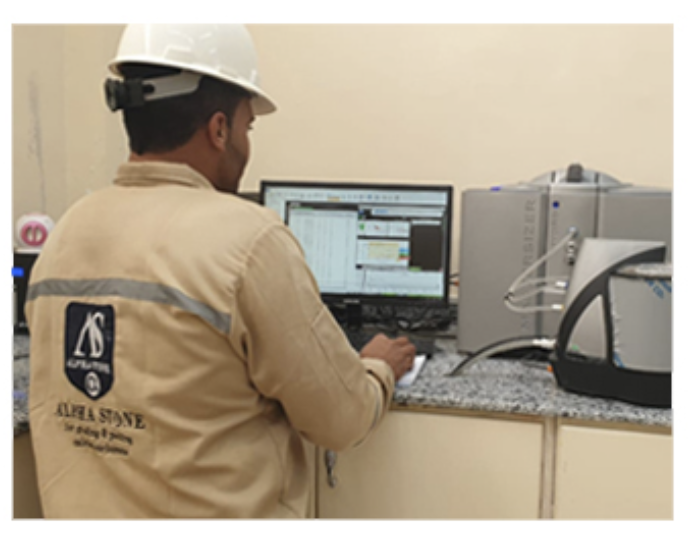

01 - Quality Control

Routine checks at intake, milling, surface treatment, and packing. Every batch tested for purity, whiteness, moisture, and particle size.

02 - Reliable Logistics

Export planning, lead-time clarity, and packaging options. We coordinate shipping and documentation.

01 - Consistent Supply

Controlled sourcing and processing designed for repeatable performance batch to batch.

Global Supply & Logistics

Shipped from the Right Port for Your Destination

Red Sea & Gulf of Suez

For the Gulf, Saudi Arabia, India, Pakistan, Bangladesh, East Africa and the Far East.

Ain Sokhna · Adabiya · Suez · Safaga

Mediterranean

For Europe, Turkey, North Africa and Russia.

Alexandria · El Dekheila · Damietta · Port Said

Terms: FOB · CFR · CIF | Documents: Commercial invoice · Packing list · Bill of lading · Certificate of origin · Certificate of analysis · Independent inspection on request

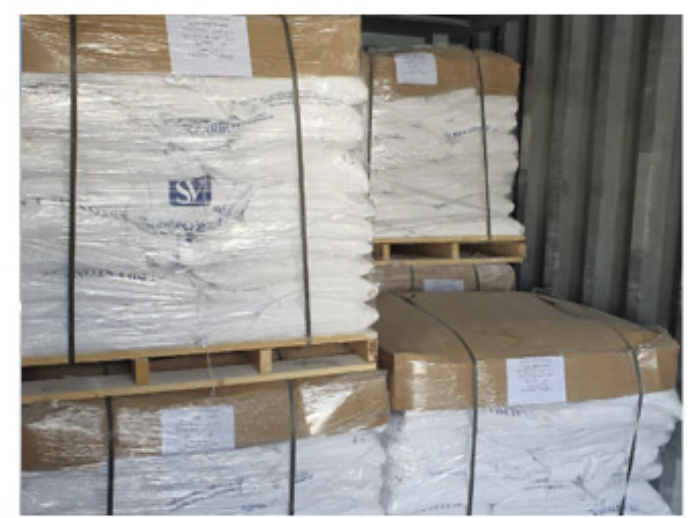

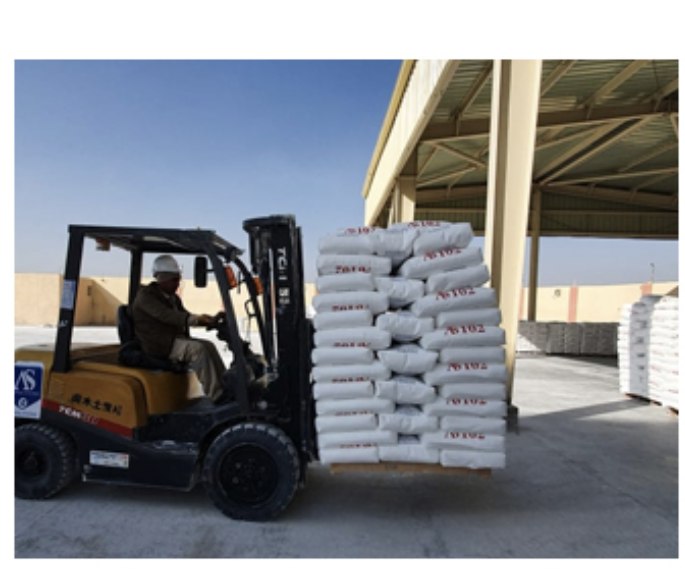

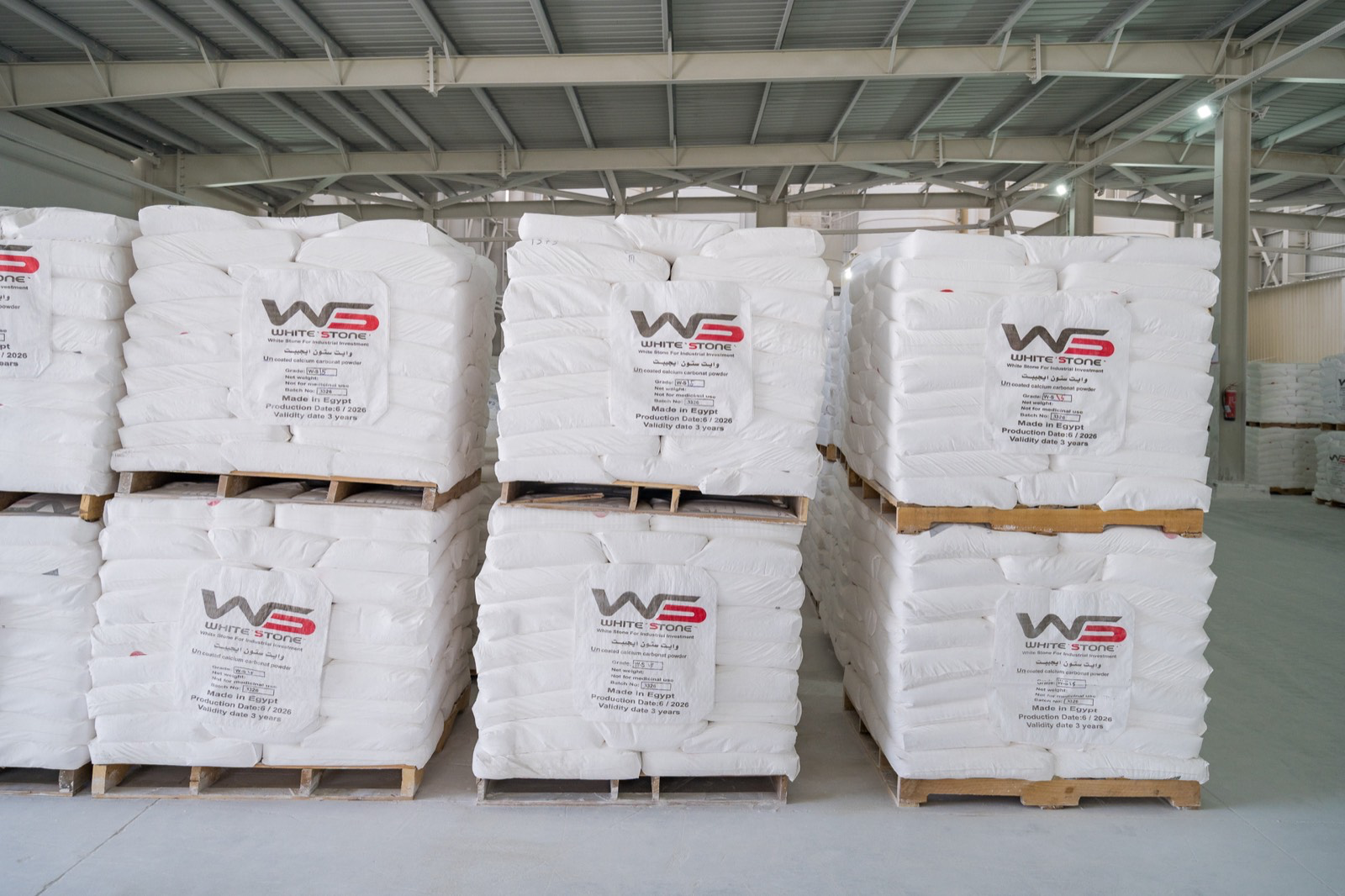

PACKAGING & LOGISTICS
